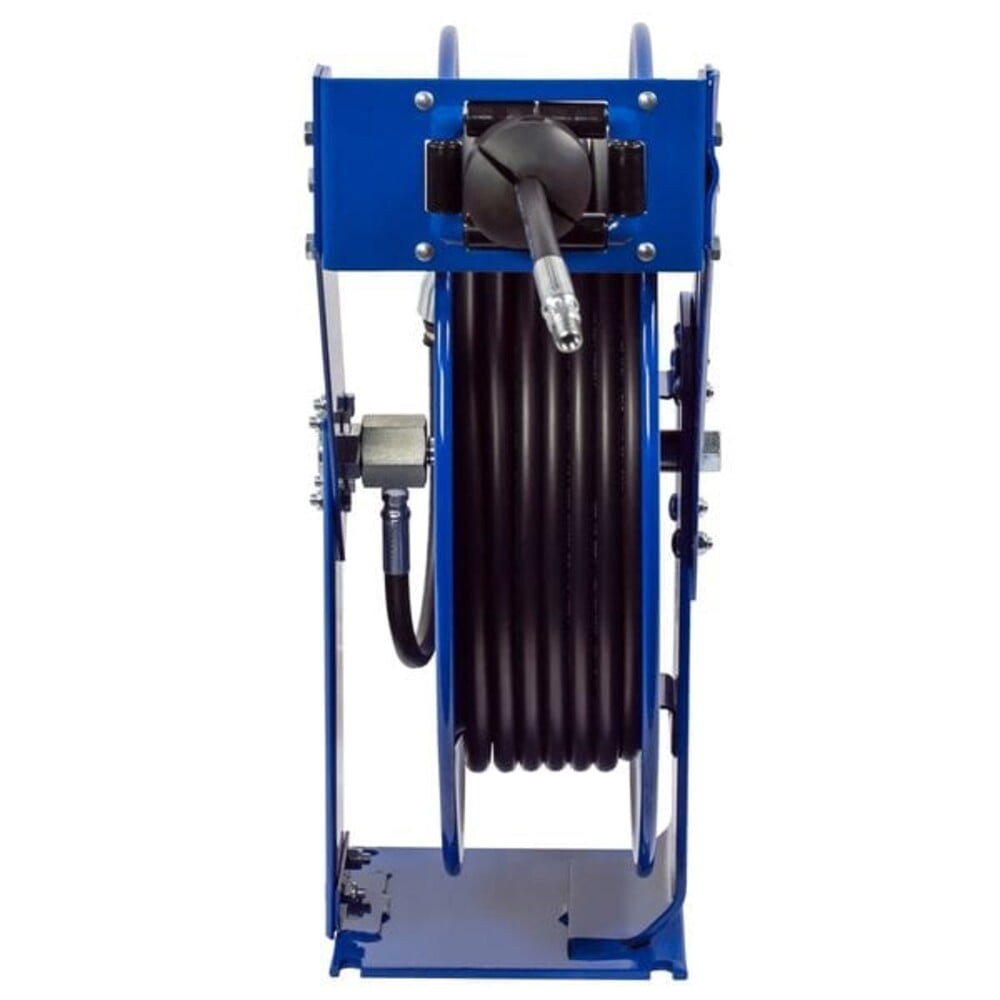

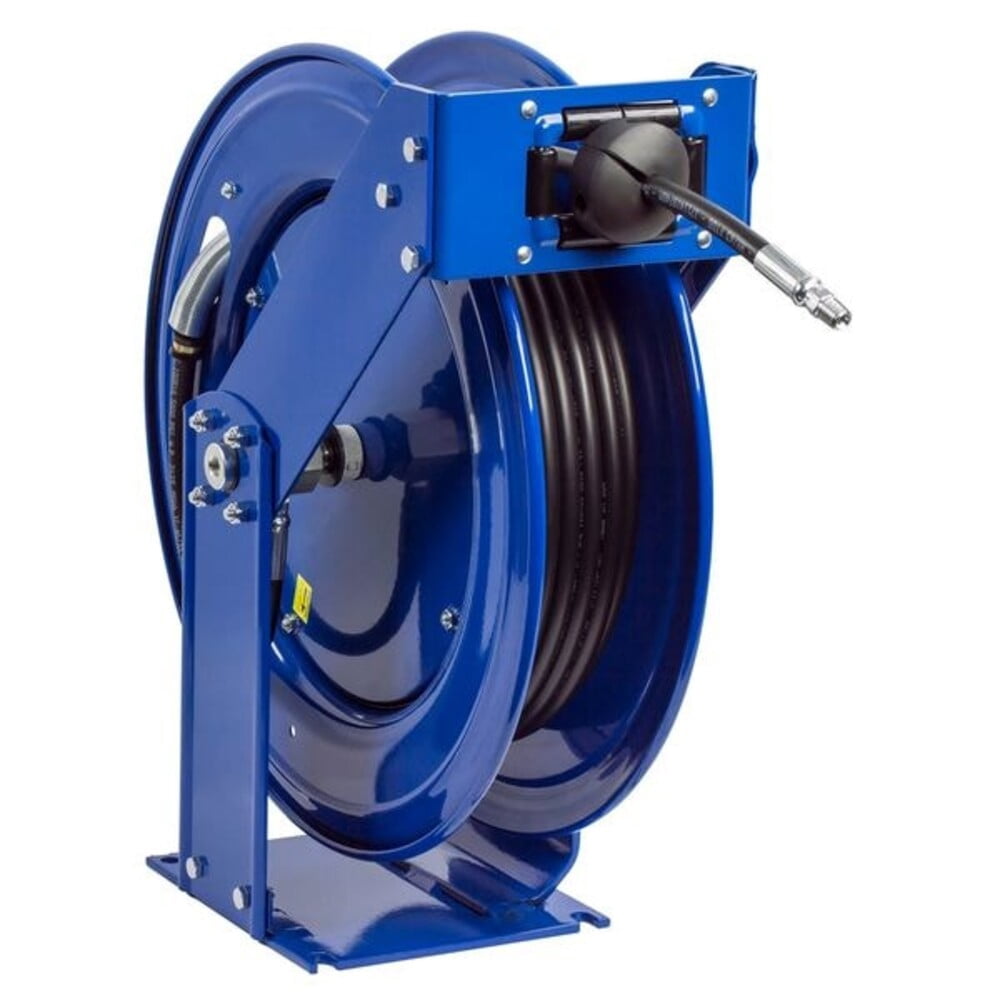

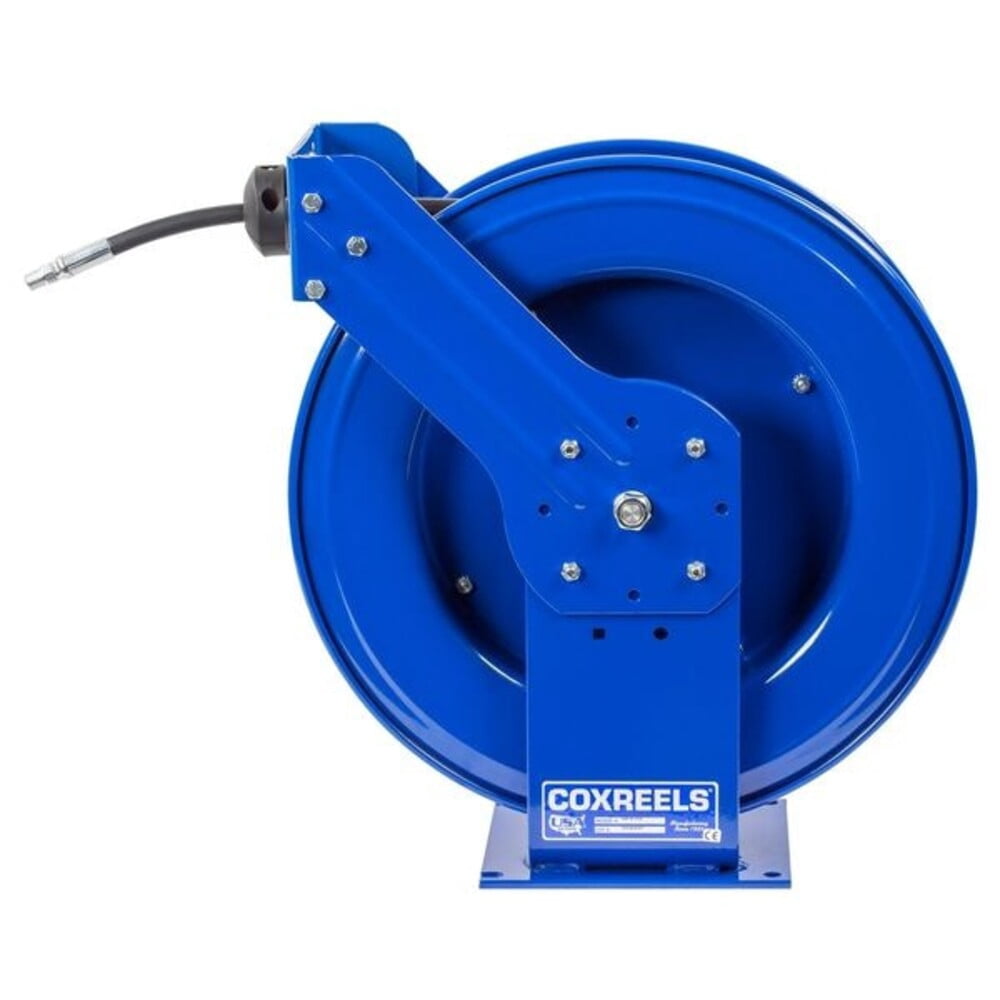

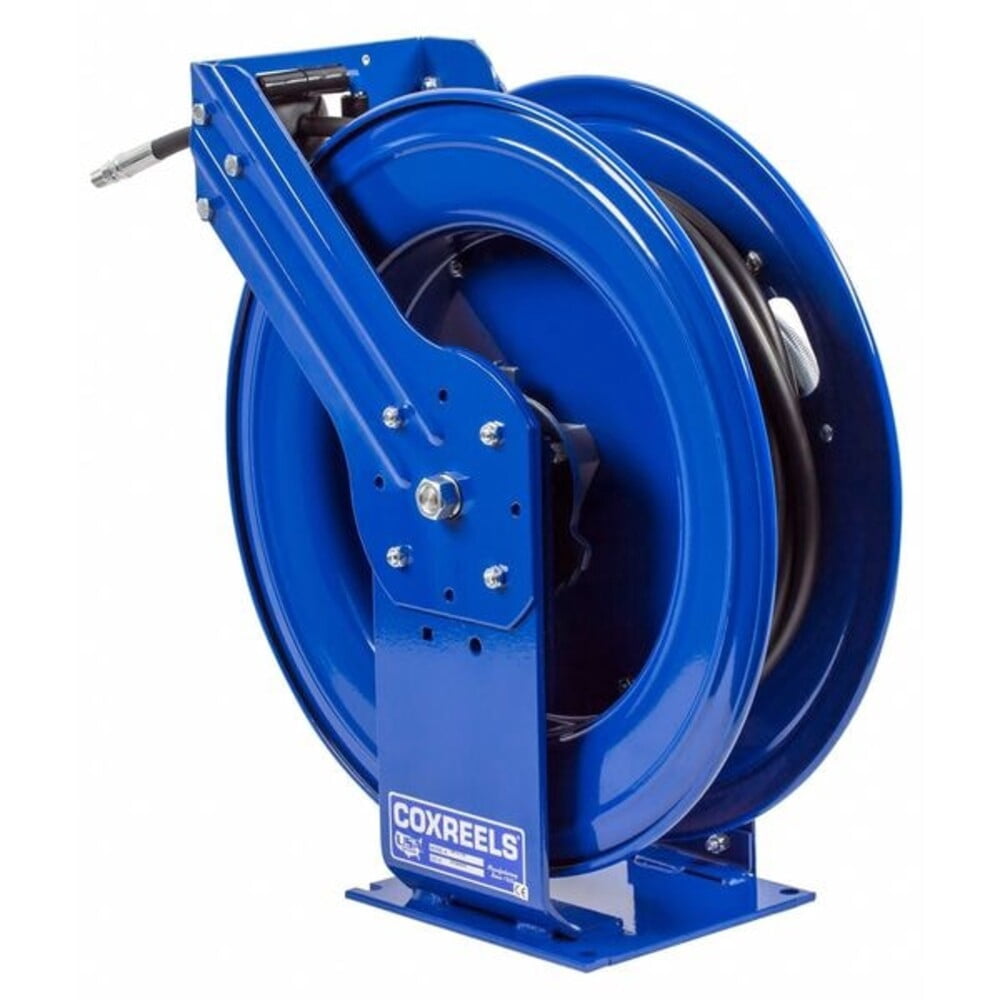

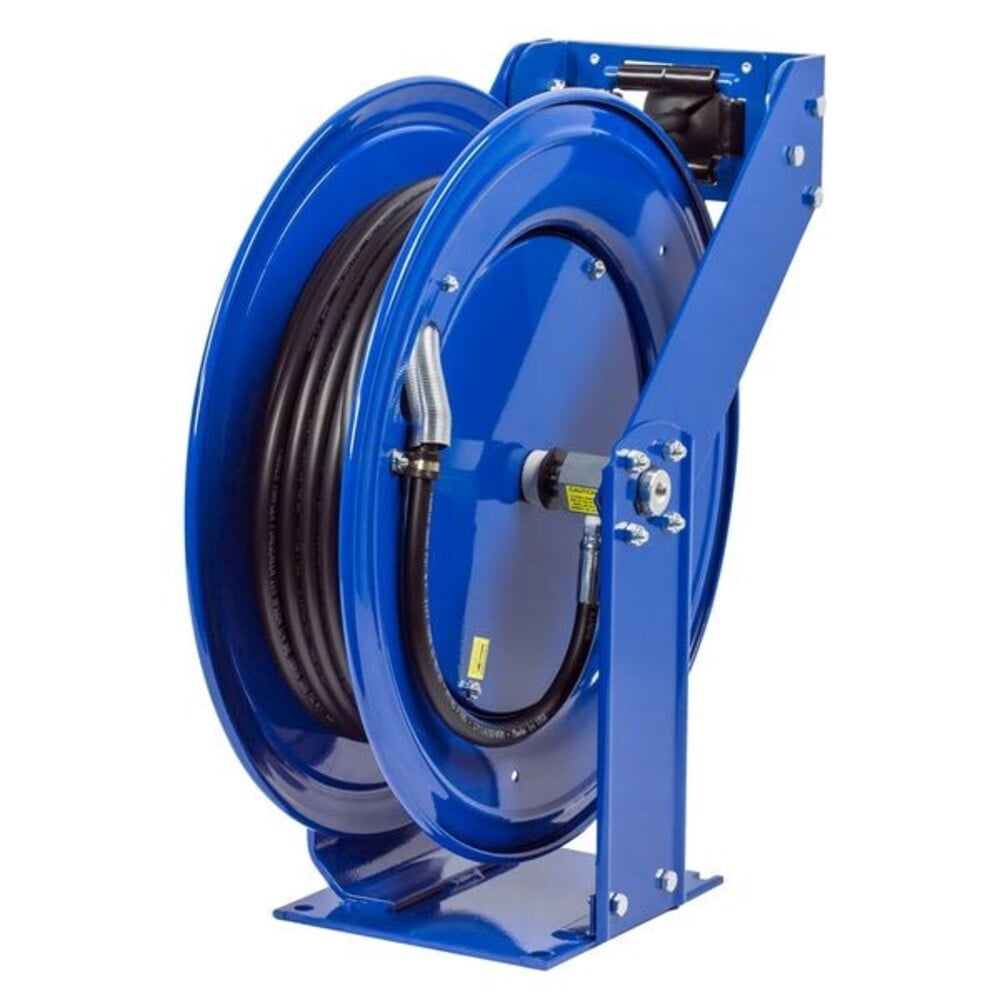

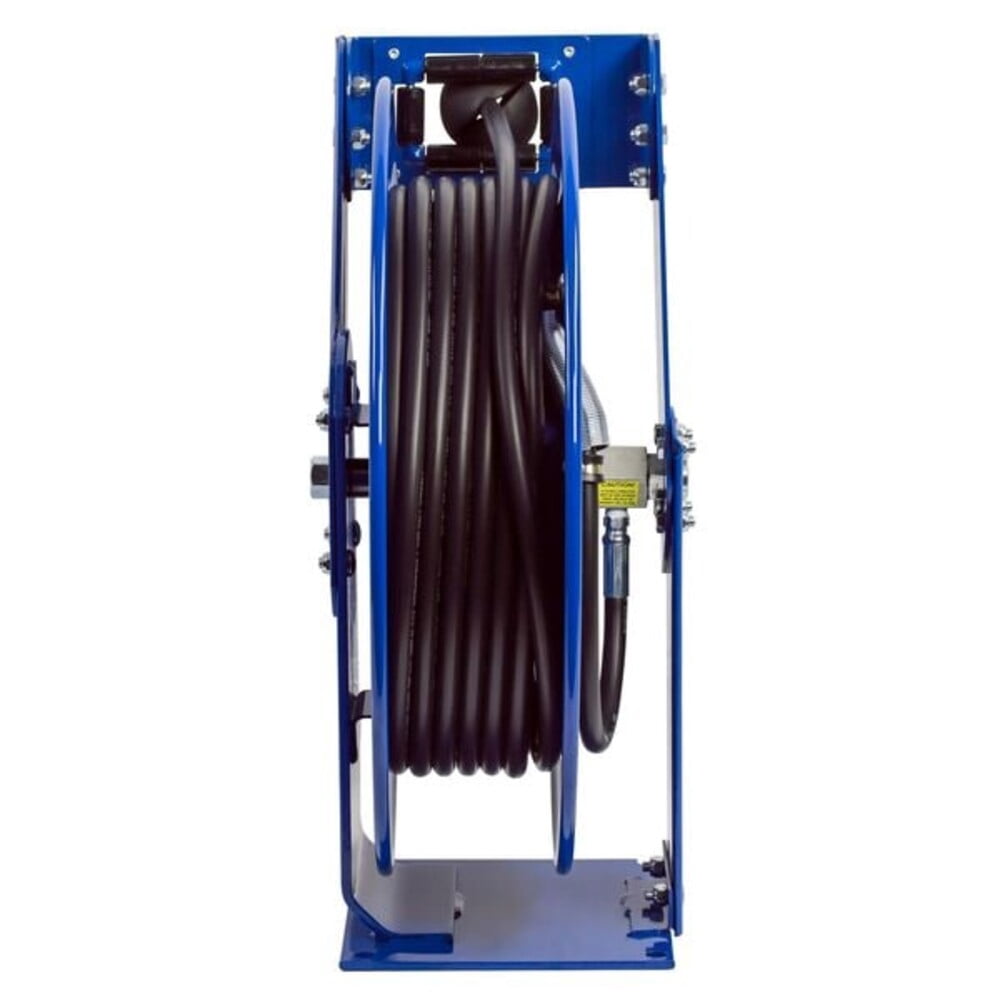

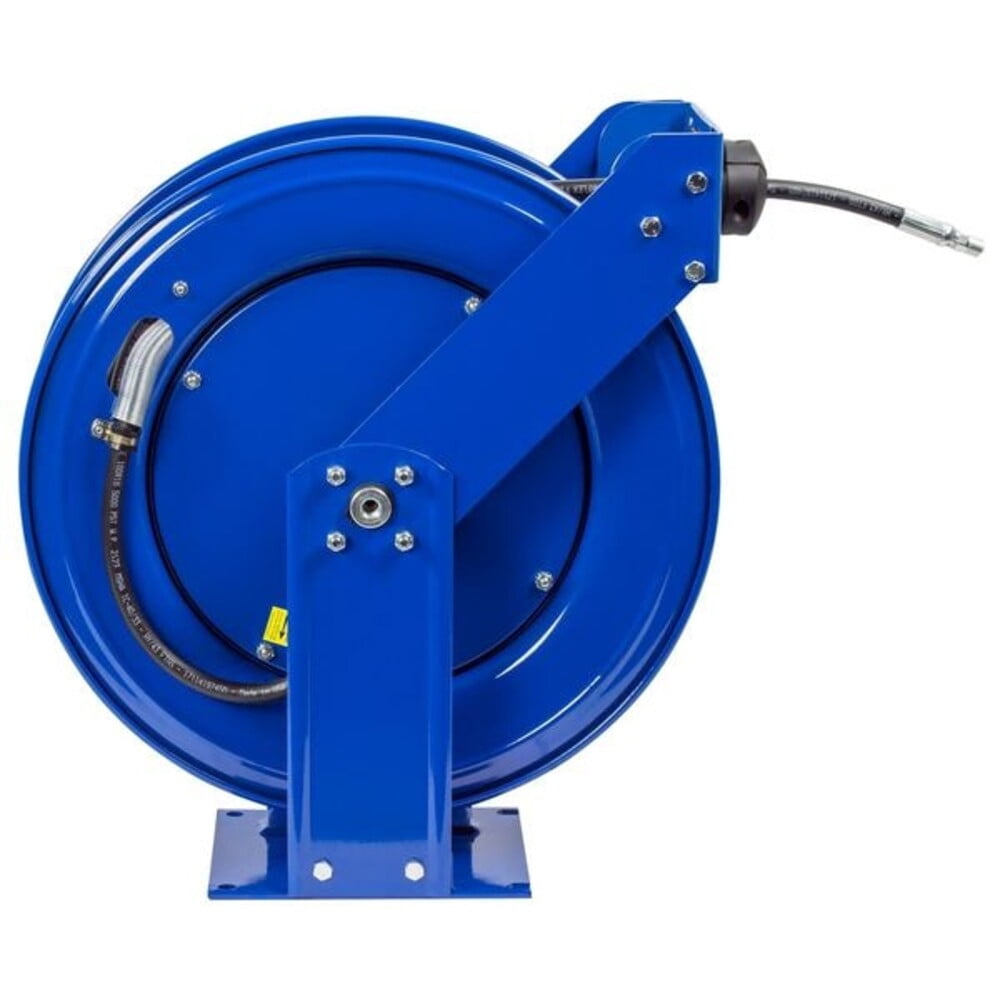

Coxreels Spring Return Hose Reel,1/4" MNPT,50 ft THP-N-150

Spring Return Hose Reel, Grease, 5,000 psi, Hose Capacity 50 ft (1/4 in I.D.), Drive Type Spring Return, Enclosed No, Includes Hose Yes, Hose Inside Dia. 1/4 in, Hose Length 50 ft, Reel Material Steel, Mounting Location Ceiling, Floor, Truck, Wall, Speed Limited Retraction No, Overall Height 21 1/4 in, Overall Length 19 1/2 in, Overall Width 9 3/8 in, Corrosion-Resistant Yes, For Dual Hose No, Hose Color Black, Hose Cover Material Synthetic Rubber, Hose Fitting A Gender Male

• Application:Air, Water, Grease, Heavy Hydraulics
• Bearing Construction:Permanently Lubricated
• Bearings:Permanently Lubricated
• Duty Rating:Heavy Duty
• Enclosed:No
• Fasteners Included:No
• Features:1" Solid Steel Axle, External Fluid Path, Heavy Gauge 1/4" Steel Base & Support Post For Maximum Stability, Long Lasting & Chip Resistant Rust Inhibiting CPC Powder Coat Finish, Multi-Position Lock Ratchet Mechanism Secures Hose At Desired Length, Non Corrosive Stainless Steel Pawl Spring, Pawl & Zinc Plated Ratchet, Rolled Edges and Ribbed Discs Provide Strength and Safety, Solid One Piece
• Finish - Hose Reels:Powder Coated
• Fitting Size:1/4 in x 1/4 in
• Fitting Type:NPT x NPT
• For Dual Hose:No
• Overall Dimensions:19 1/2 in L x 9 3/8 in W x 21 1/4 in H
• Overall Height:21 1/4 in
• Overall Length:19 1/2 in
• Overall Width:9 3/8 in
• Pedestal Type:Dual Pedestal
• Reel Color:Blue
• Reel Diameter:19 1/2 in
• Reel Finish:Powder Coated
• Reel Inlet:1/4 in (F)NPT
• Reel Material:Steel
• Reel Width:9 3/8 in
• Twin Hose Compatible:No
• Weight:74 lb
